U.01
Browser-based
A standard PC with a Windows browser is enough.
Capability · Aurora HMI
Set spray patterns
on screen.
Aurora is our own user interface for spray systems with a chessboard grid. It runs in the browser, in any language, with DXF import for spray patterns and live diagnostics.
Advantages
What Aurora
can do.
Aurora runs in a normal browser on a standard PC. There is no need for an expensive operator panel from a particular manufacturer.
U.02
DXF import
Design drawing in, spray pattern out. Formats: DXF, DWG, VDF, VDI, EMF, WDF, WMF, JPG, PNG.
U.03
Any language
The interface is available in any language in the world, to suit your operators.
U.04
Dark mode
Light and dark display, switchable to suit the surroundings.
U.05
Synoptic diagnostics
Live system schematic with readiness, brush, oiler, oil types. Faults can be located immediately.
U.06
Auto backup
Configurable from 30 min to daily. Up to 20 backups in parallel. USB interface for external storage.
Feature set
Features at
a glance.
F.01
Program & recipe management
Load, create, edit, save, “Save as”, delete programs. Parameters per tool. Up to 3 oil types in parallel. The tool number calls the program automatically.
F.02

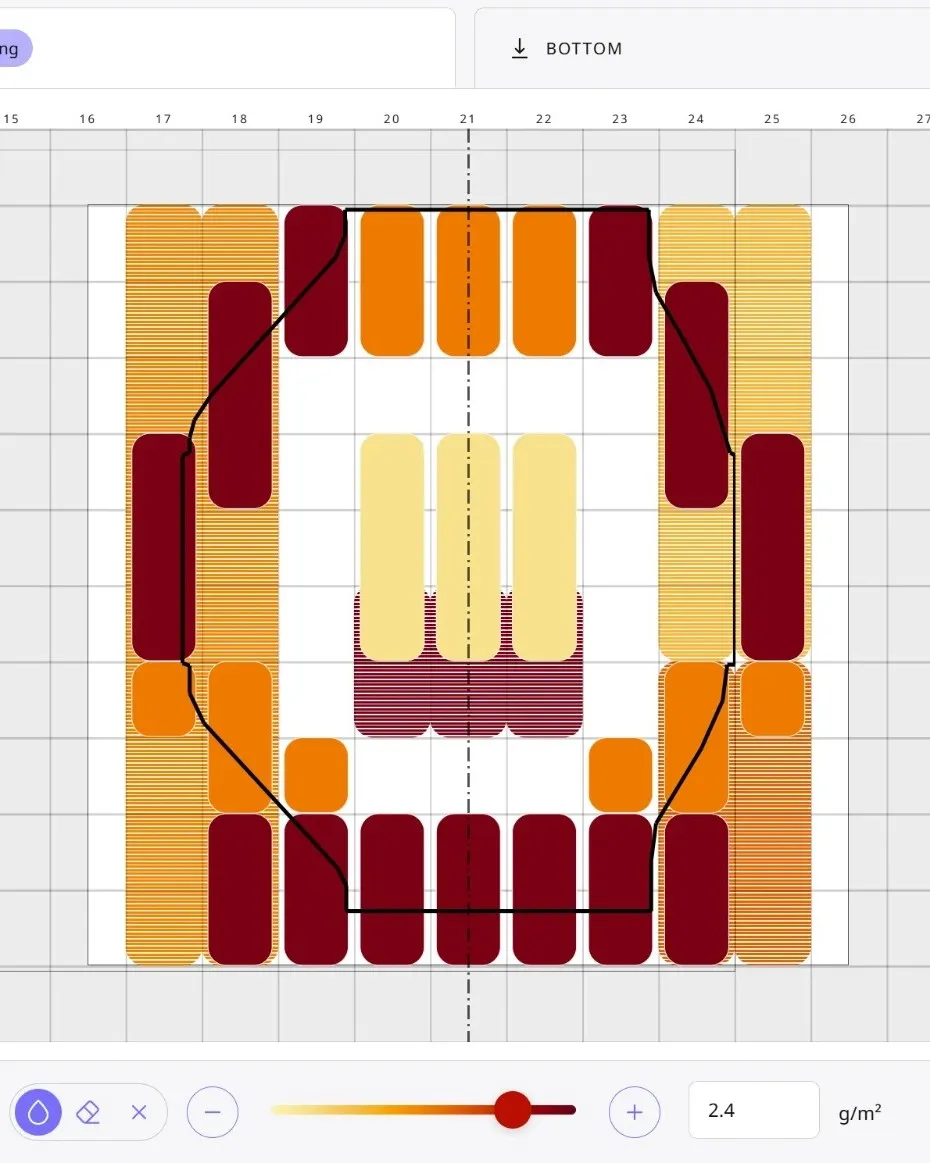

Spray-pattern editor
Visual editor, drag-paint with the mouse. Fields on both sides or individually. Load the design drawing as a background. Application quantities directly visible.
F.03
Live parameters
Oil pressure, air pressure, oil temperature, separated top/bottom. Target / tolerance / actual with colour bars. Heat exchanger and boiler with their own control.
F.04
Permission matrix
10-level user system (level 0–9). Configurable per data field what may be changed. Clean for audit and shift change.
F.05
Alarm history
Active and past alarms with a period filter (24 h to 3 months). Located via synoptic system schematics.
F.06
Filter & flow monitoring
Filter saturation for oiler and brush with differential-pressure thresholds (F7, F9). Flow measurement per spray nozzle, individually evaluable.
Field of use
Made for
the spray pattern.
A.01
Spray systems with a chessboard grid
Aurora is the user interface of our spray systems with a chessboard grid, for example the EQS in the press shop. Every field can be controlled individually.
A.02
Retrofit of spray systems
Older spray systems, including those from other manufacturers, get a new user interface with Aurora. We program it to match the existing plant.
Contact
Aurora
on your system?
Send us the system description. We'll assess Aurora as new equipment or a retrofit, including for spray systems that weren't built by us.
